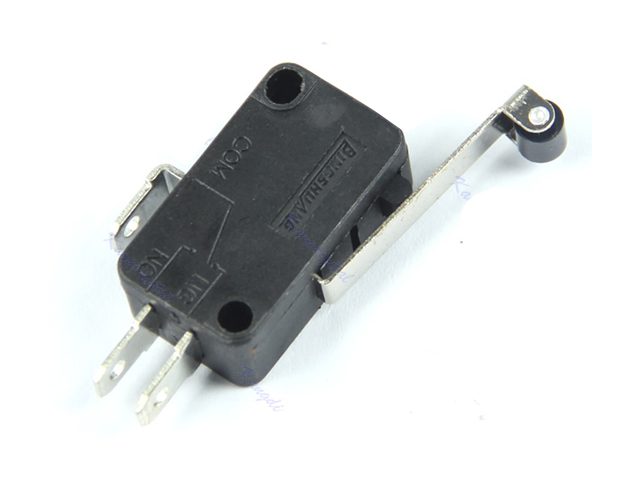

Limit Switch With Roller Wheel

Description

KW(JW) series microswitch is suitable for using in each kind of control circuit with the rated voltage less than 250V and rated current less than 20A (DC and AC effective value) for controlling elements,it is the sense switch with the certain movement strength through the certain traveling to cause the electronic contact speed.

• Dimensions of this limit switch is 28.0 x 15.5 x 9.5 mm.
• AC 125 ~ 250V – 16A
• DC 250V – 0.30A
• DC 125V – 0.60A
